Description
Description
- Easy adaptation to the existing tank height
- Linear, continuous signal of the level
- Operating Voltage (V): 12 and 24
- Installation Possibility at the Tank: Top/Bottom
- Tank Height min-max. (cm) 15-50
- Stick electrodes can be cut easily to the tank height.
Includes: Packing Washer, Coupling Ring PG 29, Operating Manual.
Tank measuring sensor, suitable and required for Votronic tank displays, one piece per tank. Suitable for plastic or metal tanks.
The tank transmitter has been designed to precisely measure the levels of freshwater tanks, sewage tanks, and plastic and metal feces tanks in campers, caravans, and boats.
The Votronic Tank Electrode 15-50K transmitter has been designed for precise level measuring of fresh water tanks, sewage water tanks, and feces tanks made of plastic and metal in campers, caravans, and boats. According to the capacitive method of measurement, the level is measured fully automatically without mechanically moving parts and transferred to the display unit via a three-core cable. The electronic system is completely sealed. Thus, it is extremely robust and insensitive to soiling.
The measuring electrode can be easily shortened to the tank's height, and an adjusting device affects the precise “full” adjustment at the unit. In the case of Tank Electrode 12-24 K or 15-50 K, a “dry” adjustment is also possible with the help of a scale.
Specification
Tank Electrode 15-50 K 1
- Easy adaptation to the existing tank height
- Linear, continuous signal of the level
- Operating Voltage (V): 12 and 24
- Installation Possibility at the Tank: Top/Bottom
- Tank Height min-max. (cm) 15-50
Includes: Packing Washer, Coupling Ring PG 29, Operating Manual

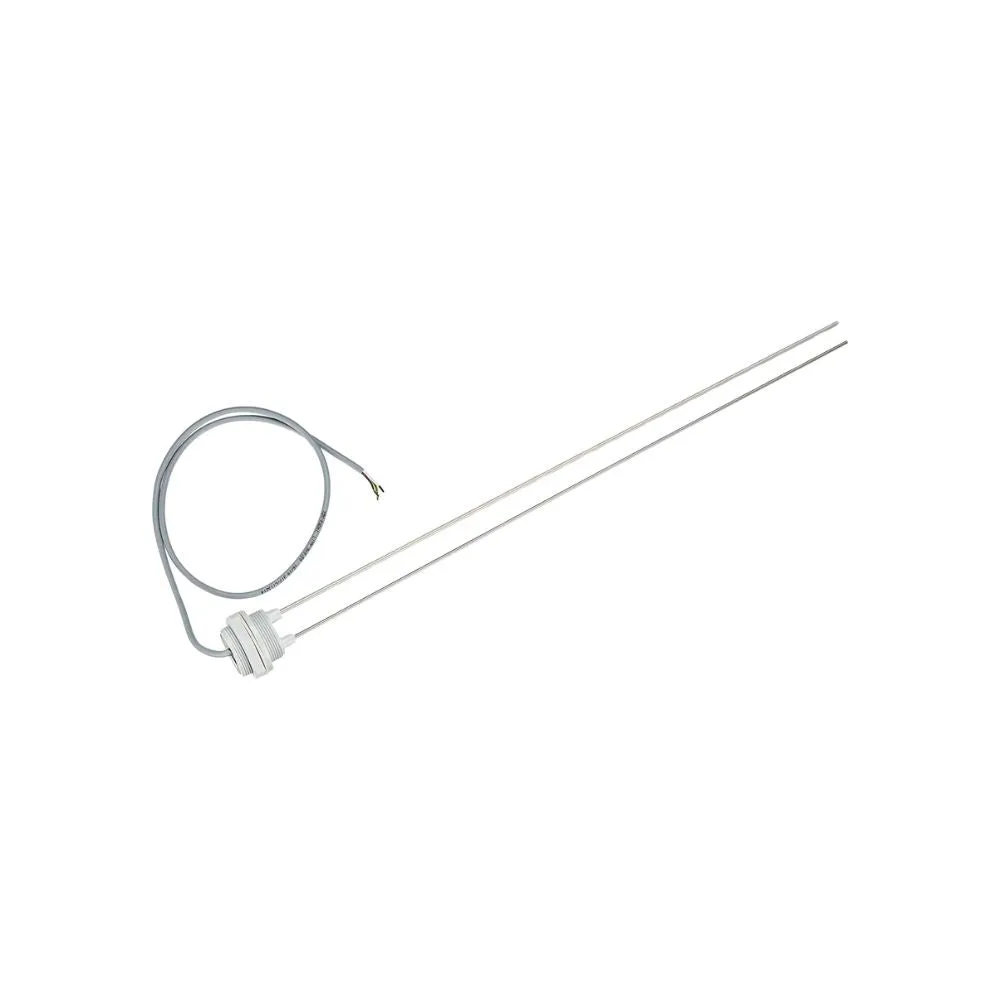

Tank Electrode 15-50K: Stick electrode, can be cut easily to the tank height
Mounting diameter 63 mm (or. PG 29)
flange diameter 46,5 mm
Connection Cable 75 cm
